The highly versatile chassis can perfectly complete the use tasks in various scenarios; the cabs with various configurations can meet your different driving needs;
Engine with various horsepower + gearbox with various torque can meet the horsepower requirements of various scenarios.
|
Type |

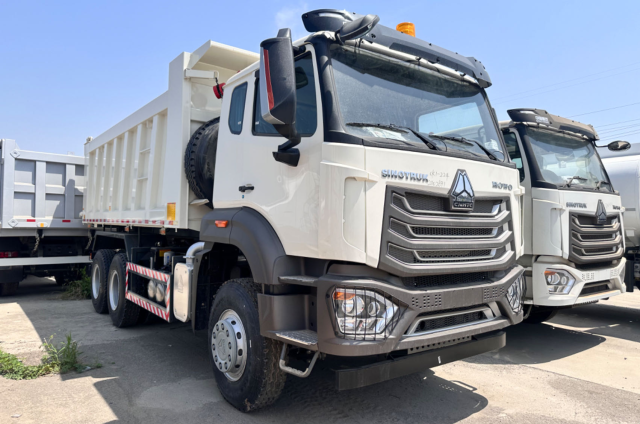

HOWO NX Dumper (RHD) |
HOWO NX Dumper (RHD) |
|||
| Model | ZZ3252V4347B1R（Nickel） | ||||
|
Weight |
Curb Weight |
9,500 kg |
17,000 kg |
||
|
|
Gross Vehicle Weight |
≤41,000 kg |
≤60,000 kg |
||
|
Dimensions |
Overall Dimensions |
9.7*2.5*3.5 |
9.7*2.5*3.5 |
||
|
|
Wheelbase (mm) |
4325+1350 | 4300 | ||
|
|
Front Overhang(mm) |
1500 | 1500 | ||
|
|
Rear Overhang (mm) |
900 | 900 | ||
|
Drive type |
6X4 |
6X4 |
|||
|
Cab |
HOWO-NX Cab |
||||
|
Engine |
Model |
WD615.47 |
WP10.380E22 |
||
|
|
Displacement |
9.726L |
9.726L |
||
|
|
Power |
371HP |
380HP |
||
|
|
Type |
six cylinders in line, water-cooling, four-stroke, turbo charger with inter-cooler, direct injection |
|||
|
|
Emission standard |
Euro 2 |
|||
|
Transmission |
HW19709XST+HW50 direct-coupled PTO，9 Forwards & 1 Reverse Shifts |
||||
|
Chassis frame |
double-layer frame (8+8/300) | ||||
|
Front axle |
VGD95（drum-type） 9.5T |
||||
|
Rear axle |
MCX16ZG double axles (i=5.451) 16T*2 |
||||
|
Suspension |
front and rear strengthened leaf spring (10/12) |
||||
|
Fuel Tank |
300L |
||||
|
Tyre |
12.00R20 |
||||
|
Performance |
Max Speed (km/h) |
65km/h |
80km/h |
||
|
|
Max Gradeability (%) |
30% |
35% |
||
|
Protections |
Type |
Metal Bumper |
|||
|
Upper Body |
7.0*2.4*2.0m (33.6m3) Bottom 8mm and Side 6mm Front Lift Chinese brand Hydraulic Cylinder |
6.2*2.4*1.8m (26.78m3) Bottom 10mm and Side 8mm Front Lift Chinese brand Hydraulic Cylinder |
|||
